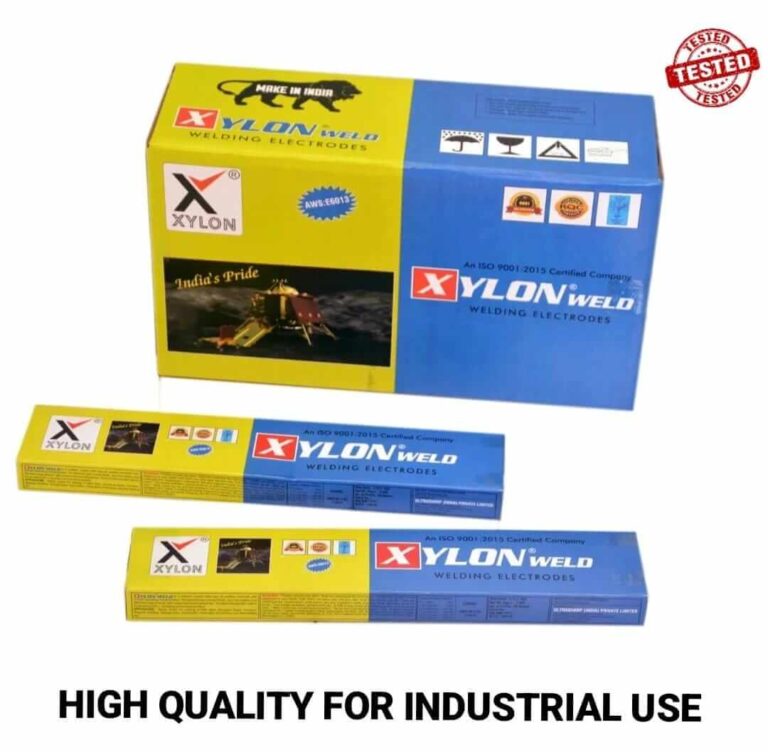

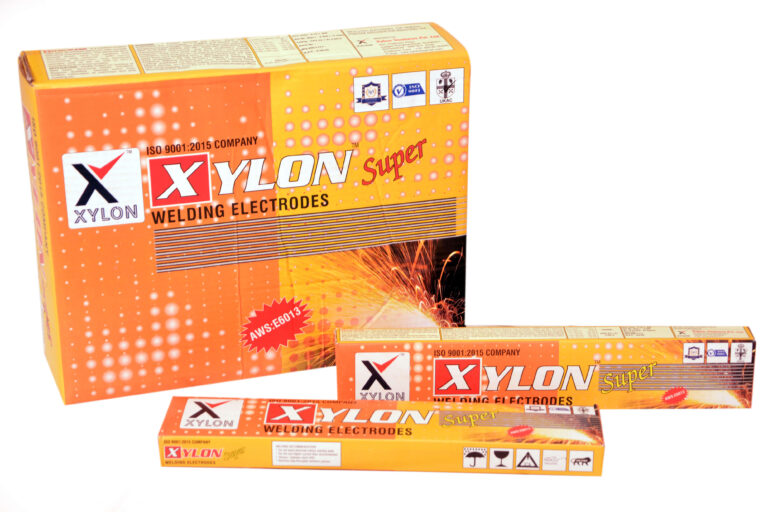

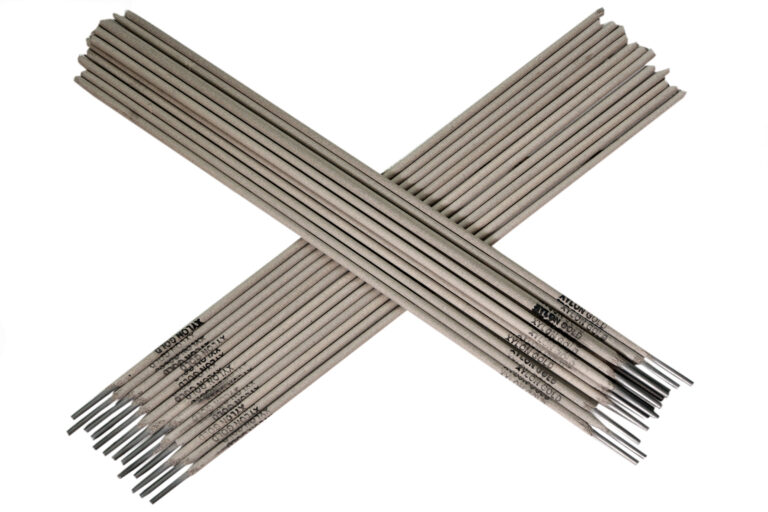

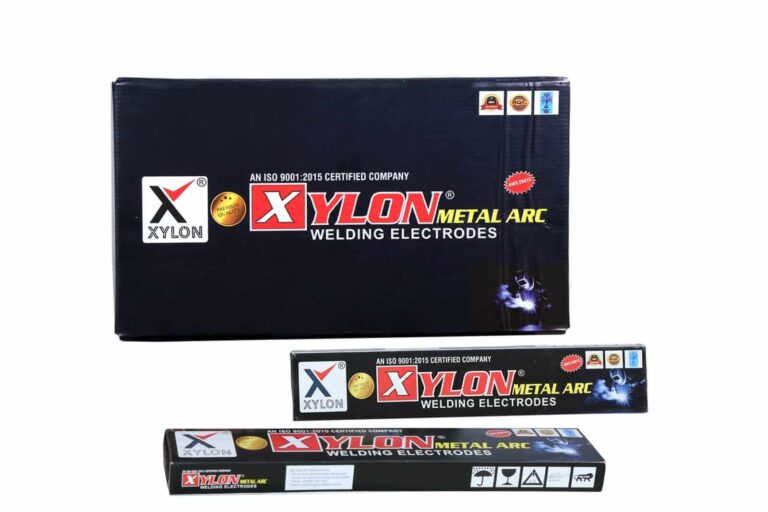

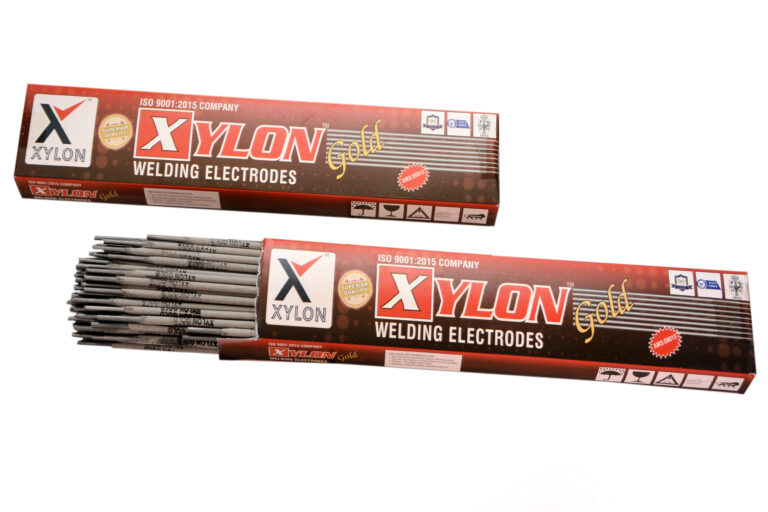

XYLON – 6013: General Purpose Rutile Welding Electrode
XYLON – 6013 is a medium-coated rutile-type electrode designed for all-position welding. It delivers smooth and stable arc performance, uniform metal deposition, and excellent re-strike capability. Suitable for both AC and DC power sources (50V OCV or above), it is ideal for general fabrication and structural welding jobs.
Key Features:
- Smooth arc with minimal spatter
- Excellent re-strike and slag removal
- Works with both AC and DC (±)
- Suitable for all welding positions
- Uniform bead appearance with stable arc characteristics
Applications:
- Steel frames, grills, and gates
- Bridges and structural steelworks
- Railway wagons and truck bodies
- Shipbuilding (hulls and decks)
Recommended Operating Parameters & Packaging:
|
Size (mm)
|
Current Range (A)
|
Packing Details
|
|---|---|---|
|
2.50 x 350
|
60 – 90
|
135 rods/packet × 12 packets/case
|
|
3.15 x 350
|
100 – 140
|
2.50 kg/packet × 12 packets/case
|
|
3.15 x 450
|
100 – 140
|
3.00 kg/packet × 4 or 8 packets/case
|
|
4.00 x 350/450
|
140 – 200
|
3.50 kg/packet × 8 packets/case
|
|
5.00 x 450
|
180 – 250
|
3.50 kg/packet × 8 packets/case
|
Typical Weld Metal Chemical Composition (%):
|
Element
|
Max. Content
|
|---|---|
|
Carbon (C)
|
0.12
|
|
Manganese (Mn)
|
0.60
|
|
Silicon (Si)
|
0.40
|
|
Phosphorus (P)
|
0.040
|
|
Sulphur (S)
|
0.040
|
Mechanical Properties of Weld Metal:
|
Test
|
Requirement
|
|---|---|
|
Yield Strength
|
≥ 330 N/mm²
|
|
Tensile Strength
|
410 – 540 N/mm²
|
|
Elongation
|
≥ 20%
|
|
Impact (CVN) at 27°C
|
≥ 47 Joules
|
